5150III® 50W EL34 Head
5150III® 50W EL34 Head
Model #:
2253066000
Regular price
1.649,00 €
Regular price
1.649,00 €
1.649,00 €
Sale price
Unit price
per
Tax included.
Couldn't load pickup availability
5150III® 50W EL34 Head
Regular price
1.649,00 €
Regular price
1.649,00 €
1.649,00 €
Sale price
Unit price
per
Overview

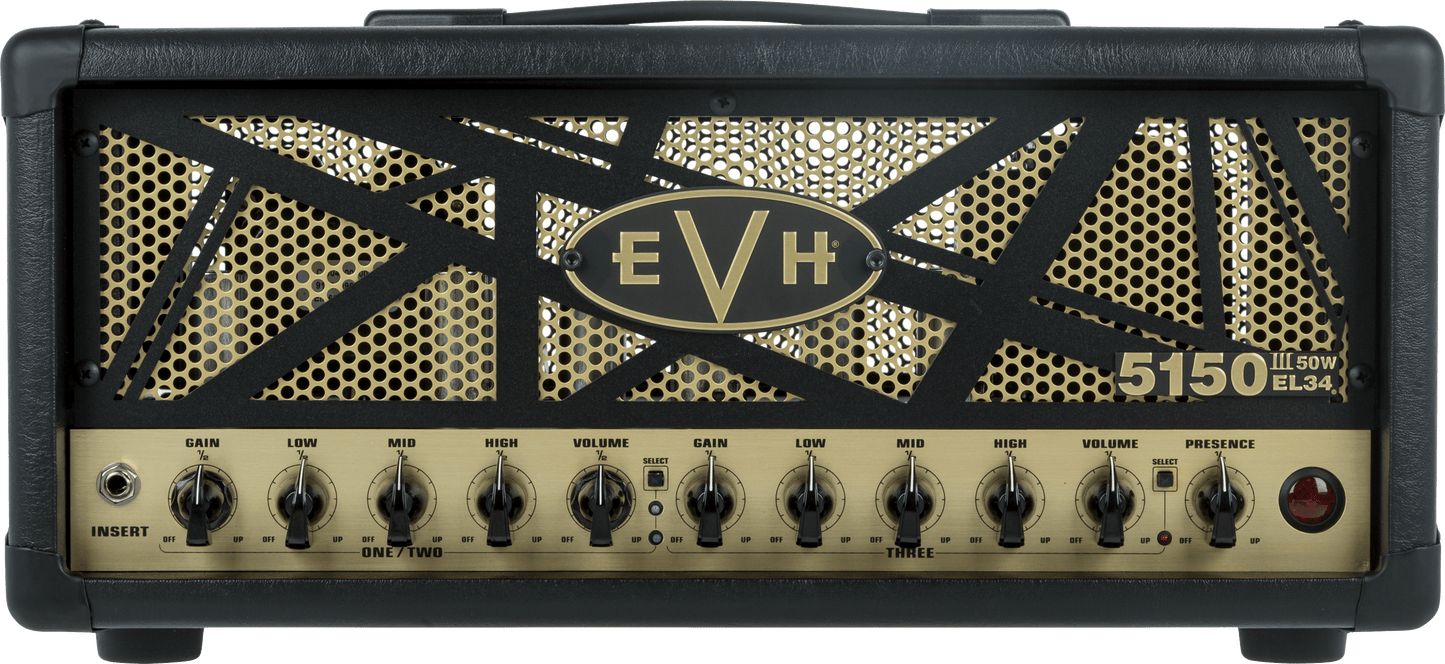

Independent volume and gain control for all three channels has arrived with the 5150III® 50W EL34 head. Experience total control, along with the same lethal looks and ferocious EL34 tone of the 100-Watt head.
The EL34 power tubes deliver signature harmonic overtones, with more dynamic compression and saturation that evoke a more modern "British" sound, all with the sustain and versatility expected from EVH® 5150III® amps.
Channel one boasts a more sparkling and compressed clean tone, while channels two and three possess a slightly darker and compressed tone with even more saturation than before. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high), while channel 3 has an independent EQ. Other features include a rear-panel resonance control that tailors low-frequency response for all channels and a global presence control.
Wrapped in an elegant gold and black EVH motif, the EL34 50-watt head also is equipped with an effects loop, headphone jack, pre-amp out and midi-in.
Specs
Accessories
Electronics
Channels
Three - (Clean, Crunch and Lead)
Connection Type
1/4"
Connectivity
MIDI
Control Panel
Channel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
Controls
Channel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
Effects Loop
1/4" (Send/Return)
Headphone Jack
1/4" Stereo
Inputs
One - 1/4", MIDI (rear)
Line Out
One - 1/4"
Wattage
50 Watts
General
Amplifier Type
Tube
Color
Black and Gold
Platform
EVH® Heads
Product Name
5150III® 50W EL34, 230V EUR
Series
EVH® 5150III® Heads
Hardware
Amplifier Covering
Black Textured Vinyl
Cabinet Material
White Birch
Control Knobs
Black Chicken-Head Style Pointer
Front Panel
Gold Anodized
Grille Cloth
NA
Handle
Molded Plastic Strap with Black Powder Coated Caps
Speaker Jack
Two - 1/4" Parallel
Measurements
Power Tubes
2 x JJ EL34
Product Depth
12" (30.5 cm)
Product Height
8.5" (21.6 cm)
Product Width
20" (50.8 cm)
Miscellaneous
Commodity Code
8518.40.2000
Power Cable
IEC
Speakers
Total Impedance
4, 8, or 16 ohms
Tubes
Power Tubes
2 x JJ EL34
Preamp Tubes
7 x JJ ECC83S (12AX7)
Rectifier
Solid State
