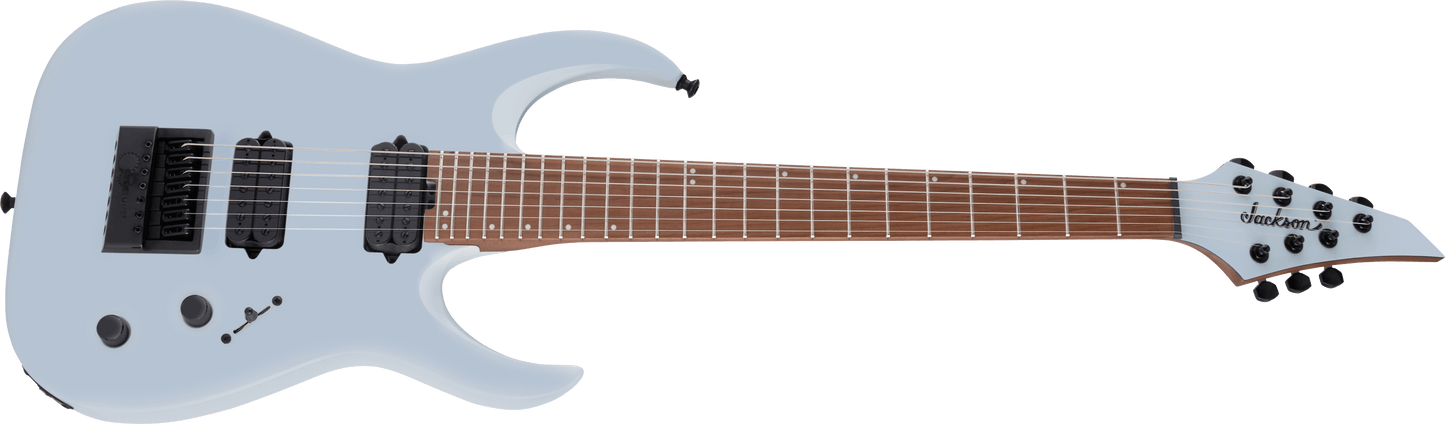

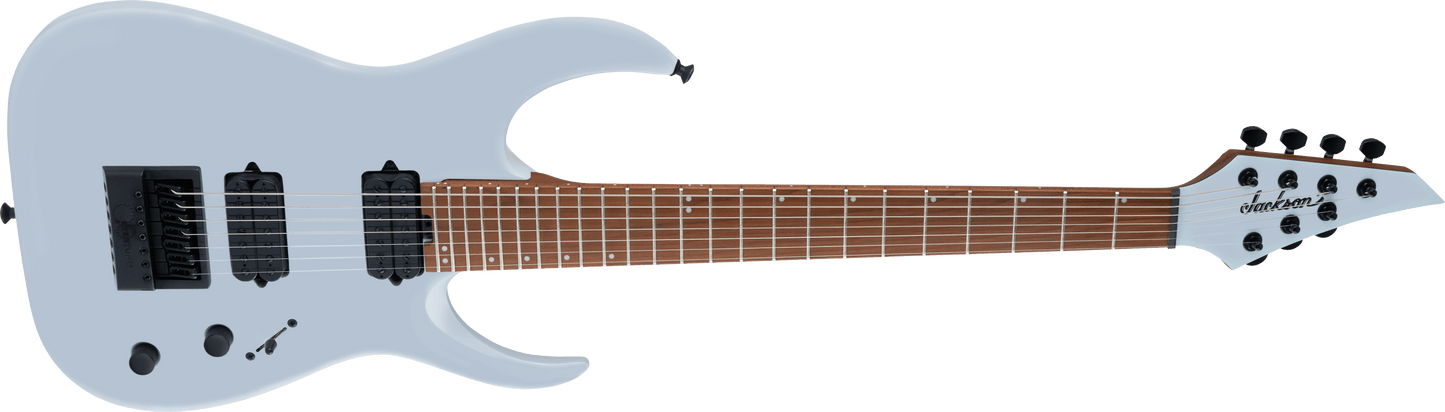

Pro Series Signature Misha Mansoor Juggernaut ET7
Regular price
1.459,00 €
Regular price
1.459,00 €
1.459,00 €
Sale price
Unit price
per
Overview
Djent forefather and speed demon Misha Mansoor has gained widespread acclaim as the mastermind behind the axe-centric progressive metal band Periphery. He's known to impress the most discerning of metal fans with his steadfast, fleet-fingered technique, and his personally designed collection of Jackson® signature Juggernaut instruments is sure to set your tone ablaze.
The Pro Series Signature Misha Mansoor Juggernaut ET7 offers a 26.5" scale length, basswood body and caramelized bolt-on maple neck with rock-solid graphite reinforcement, wrap-around heel and oiled back finish for greater playing comfort. Enjoy blazing fast leads with a 20" flat radius caramelized maple fingerboard featuring rolled edges, 24 jumbo frets and offset dot inlays. Luminous side dots will guide your way even on the darkest of stages, while the heel-mount truss rod adjustment wheel allows for convenient neck relief tweaks.
Not willing to sacrifice tone, Mansoor spent considerable time working with Jackson to develop the Jackson MM1 pickups. These super-charged humbuckers produce a balanced sonic landscape with plenty of dynamics, and by leaving them uncovered, there's an added and distinct brightness that remains articulate under heavy picking. A five-way pickup blade switch, single volume control and single tone control with push/pull select feature allows for multiple tonal variations and exploration. An EverTune® F7 Model bridge will keep your guitar perfectly in tune and intonate all the way up the neck to handle low tunings.
This 7-string Juggernaut is gorgeous in Gulf Blue with a color matched Jackson 4x3 AT-1 headstock and black hardware.
Overview
Features
- 26.5" scale length
- Basswood body
- Bolt-on caramelized maple neck with graphite reinforcement, scarf joint and oiled back finish
- 20"-radius caramelized maple fingerboard with rolled edges, 24 jumbo frets and offset white dot inlays
- Heel-mount truss rod adjustment wheel
- Luminous side dots

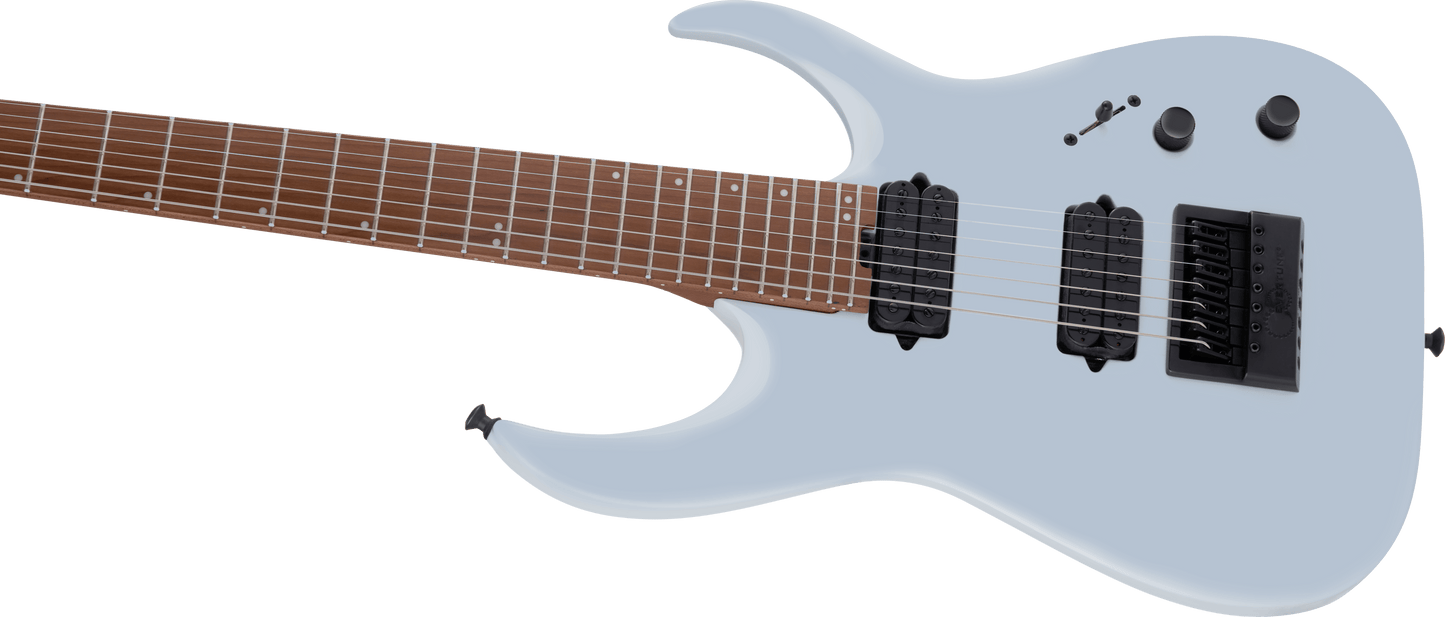

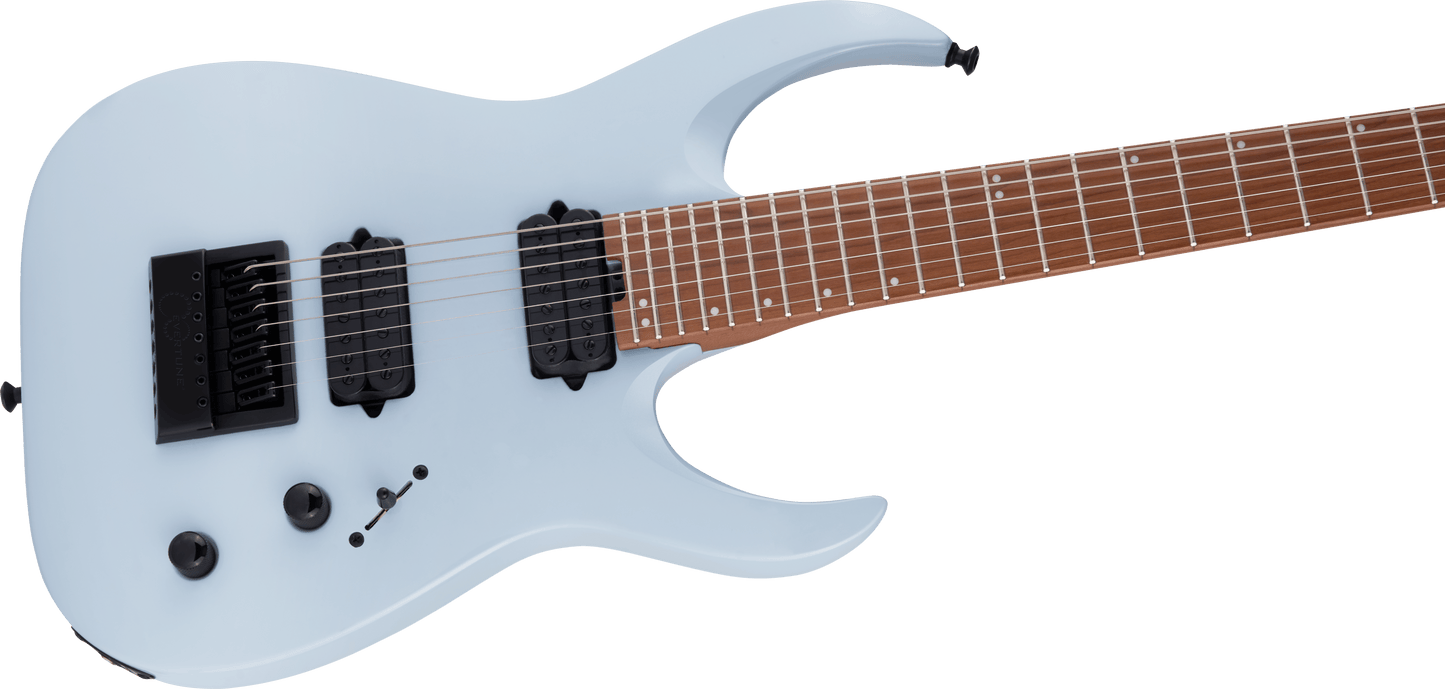

- Uncovered direct mount Jackson MM1 pickups
- Five-position pickup blade switch, single volume control and single tone control with push/pull select feature
- EverTune® F7 Model bridge
- Horizon Devices Strings - Progressive Tension Standard 7
- Jackson sealed die-cast locking tuners and Dunlop® dual-locking strap buttons
- Available in Gulf Blue with a color matched Jackson 4x3 AT-1 headstock and black hardware
Highlights
20"-Radius Caramelized Maple Fingerboard
The higher the radius, the flatter the fretboard. A traditionally classical guitar styled fingerboard, this 20”-radius is wicket flat, perfect for endless bends without any vibration hindrance. The caramelized maple fingerboard has been roasted for increased stability, exquisite style with beautiful grain definition and smoother playability for crystal clear, bright tones.
EverTune® 7 Bridge
Notes on the upper registers run the risk of being sharp if inconsistent pressure is applied to the fret. With the EverTune® 7 bridge, this model is able to maintain perfect intonation for each note on the fretboard. This precisely engineered bridge provides unprecedented articulation across the scale of the guitar, particularly on notes past the 15th fret, so solos are pristine and dynamic. EverTune saddles provide constant tension throughout temperature and humidity changes, making this bridge a great choice for touring bands who are constantly changing locations.
Specs
Accessories
Body
Body
Basswood
Body Finish
Gloss
Body Material
Basswood
Body Shape
Juggernaut
Electronics
Bridge Pickup
Jackson® Uncovered MM1
Controls
Volume, Tone (with Push/Pull Select Feature)
Neck Pickup
Jackson® Uncovered MM1
Pickup Configuration
HH
Switching
5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup
General
Color
Gulf Blue
Orientation
Right-Hand
Product Name
Pro Series Signature Misha Mansoor Juggernaut ET7, Caramelized Fingerboard, Gulf Blue
Series
Artist Signature
Hardware
Bridge
EverTune® F7 Model
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
4-Bolt (recessed screws)
Pickguard
None
Pickup Covers
Black
Strap Buttons
Dunlop® Dual-Locking
Strings
Horizon Devices Strings - Progressive Tension Standard 7
Switch Tip
Black
Tuning Machines

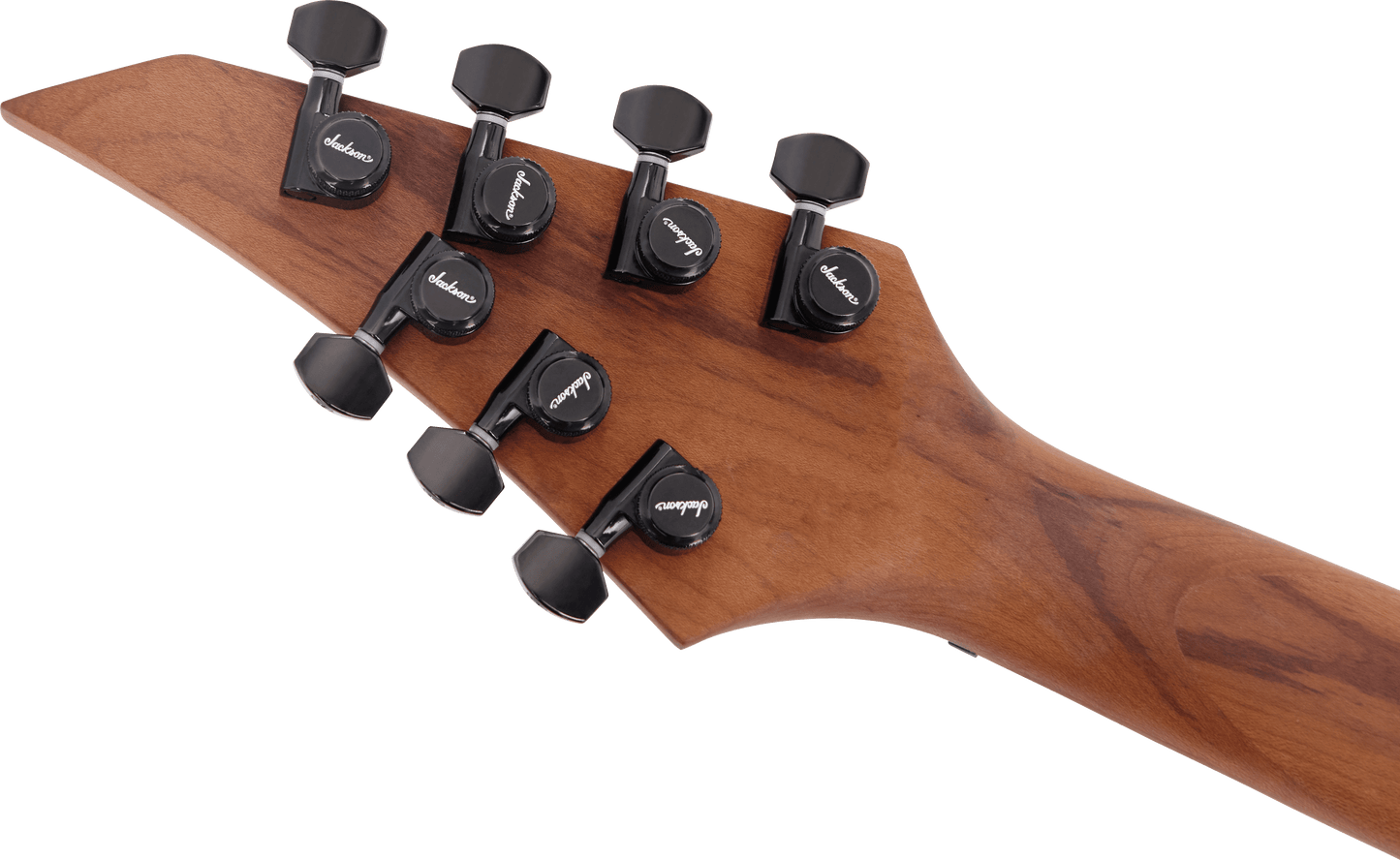

Jackson® Sealed Die-Cast Locking
Measurements
Fret Size
Jumbo
Scale Length
26.5" (673 mm)
Miscellaneous
Commodity Code
9207.90.0040
Neck
Fingerboard Material
Caramelized Maple
Fingerboard Radius
20" (508 mm)
Headstock

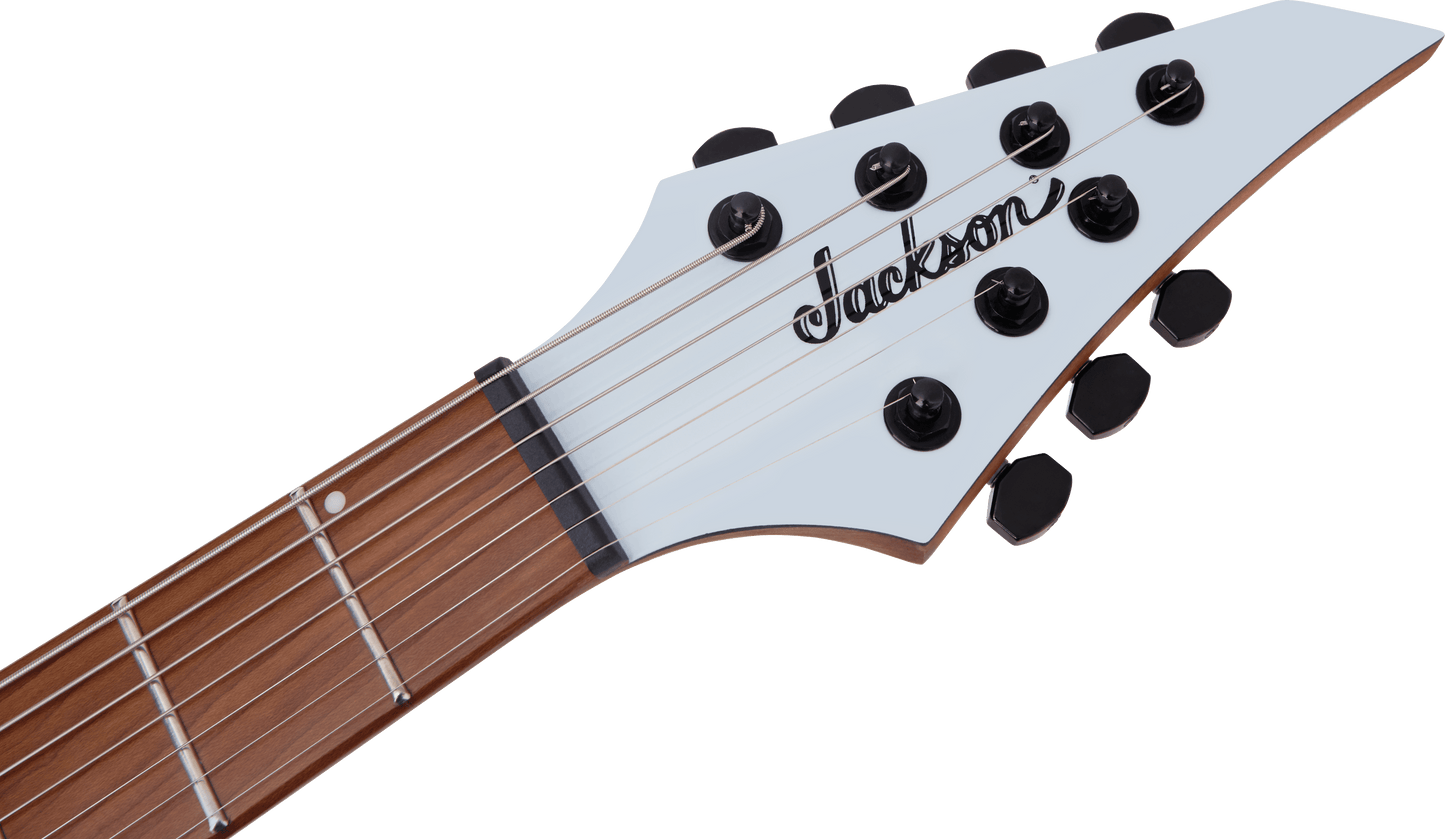

Jackson® AT-1 4x3 (4 Over/3 Under)
Neck Binding
None - Rolled Fingerboard Edges
Neck Construction
Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish
Oiled
Neck Material
Caramelized Maple
Number of Frets
24
Nut Material
Black Plastic
Nut Width
1.75" (44.45 mm)
Position Inlays
Offset White Dot
Side Dots
Glow in the Dark
String Nut
Black Plastic
Truss Rod Nut
Heel-Mount Truss Rod Adjustment Wheel
